Gauges used in molasses pumping systems

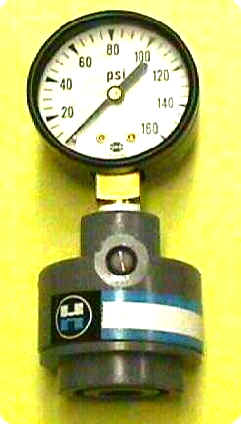

The meter illustrated below is mated with a protective diaphragm which protects the meter mechanism from the effects of molasses and other measured materials. The diaphragm is filled with glycerin, then the meter is calibrated before shipment. The diaphragm provides extra life and improved accuracy to the meter.

The meter illustrated below is the standard meter used most commonly in molasses applications.  Pressure indication is 0-100 PSI.
