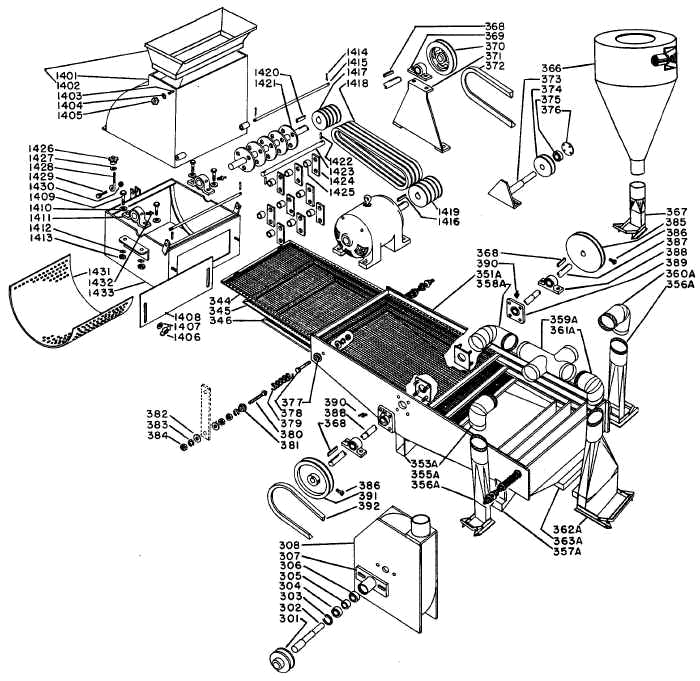

Corn Cutter and Graders Models 222 & 333
Price list number: DN1001-PL-PQW
Ref: 1598-8, #384, Effective: 1/1/01
*Price List

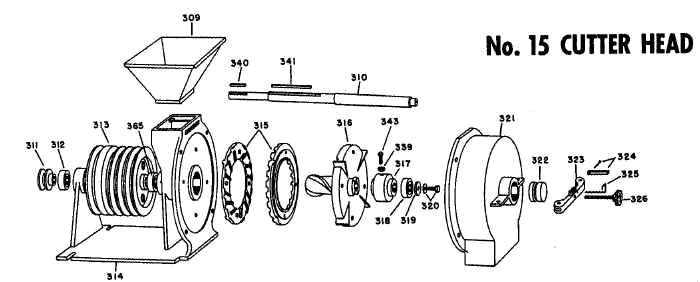

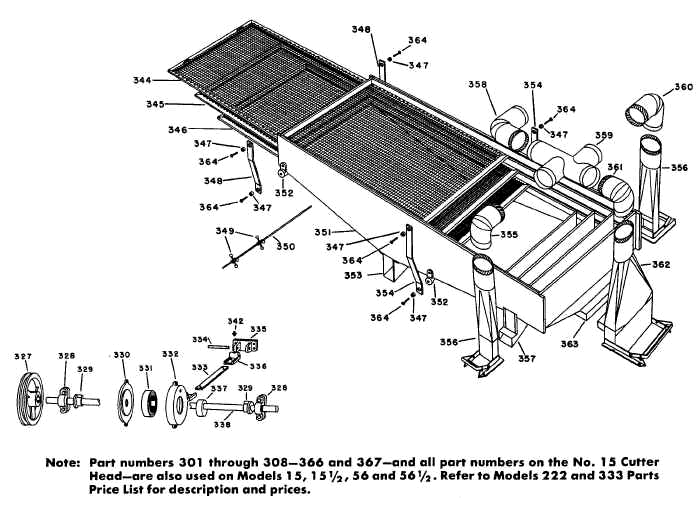

-Part numbers 301 through 308, 366 and 367, and all part numbers on the No. 15 Cutter Head are also used on Models 15, 15-1/2, 56, and 56-1/2. Refer to Models 222 and 333 parts price list for description and prices.
-For part number1425, rod spacers, see KD00010

Corn Cutter & Grader drawing reference list
(12/1/98) – REFERENCE ONLY
|
Drawing
Number
|
Date
|
Description
|
|
DM0820
|
6/5/80
|
CC&G
cutter head main shaft
|
|
DM1036
(1 of 2)
|
7/25/91
|
#333
CC&G Assembly & Parts
|
|
DM1036
(2 of 2)
|
7/25/91
|
#222
CC&G Assembly & Parts
|
|
DM1037
(1 of 2)
|
7/25/91
|
#333
CC&G Shoe, frame, sheet metal, spring
|
|
DM1037
(2 of 2)
|
7/25/91
|
#222
CC&G Shoe, frame, sheet metal, spring
|
|
DM1038
|
11/1/81
|
Hazard
Warning Decal Sheet: #222 & #333
|
|
DM1602
|
3/1/84
|
Shoe
Shaft
|
|
DM1616
|
8/9/94
|
Shoe
for #222 CC&G
|
|
DM1651
|
5/1/84
|
Cam
Roller Bagger Attachment
|
|
DM1826
|
11/13/84
|
Shoe
for #333 CC&G
|
|
DM4407
|
10/28/97
|
Dust
Hood (composite mold)
|
|
DM4413
|
12/1/97
|
Dust
Panels: #222 & #333
|
|
DM4507
|
9/11/98
|
Standard
MG hammermill (basic drawing)
|
|
DM4510
|
9/22/98
|
CC&G
cutter head rotor assembly
|
Cutter sets for CC & G #15 and 15-1/2
Standard coarse: G636 and G639
Medium: G638 and G639, or two pieces of plate #207
Fine: G251, two pieces
|
Cutter sets for CC & G #56 and 56-1/2
Coarse: G630 and G631
Fine: AN 01 and BN 01
Extra Fine: G385 and G639
|
