Horizontal | Continuous | Vertical

For over a century Kelly Duplex has been manufacturing industrial processing and material handling machinery to handle a wide range of materials and applications for industrial processes. We have specialized in building heavy duty, trouble-free machines to meet our customer’s individual needs. Our goal is not to sell a new machine to replace a 5-7 year old machine, but to install a new unit next to the original one. As our customers grow, we grow.

This broad experience has not been limited to a few types of machinery – or a few models. For example, we build a variety of distinctly different types of industrial mixing equipment. All are constructed to give you top performance and long life under maximum production conditions. All are customized and available in a wide range of capacities, and throughputs. All are built to meet our own rigid safety standards.

In the broadest terms we build mixers and blenders for continuous or batch operations. These mixers may be handling a very small batch of chemicals in a laboratory, bulk complete trailer loads of plastic, or adding water to ash in a foundry. With our experience and design expertise we can manufacture mixers and blenders to meet just about any customer’s application.

We also offer a variety of mixing actions for both batch and continuous operations. We can design mixers and blenders to gently handle products, or to very aggressively apply shear for high energy mixing dispersion.

In addition to our mixers & blenders we also manufacture a complete line of complimentary material handling equipment.

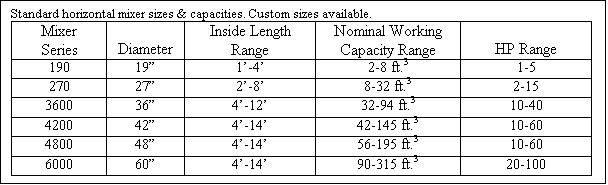

Horizontal Mixers

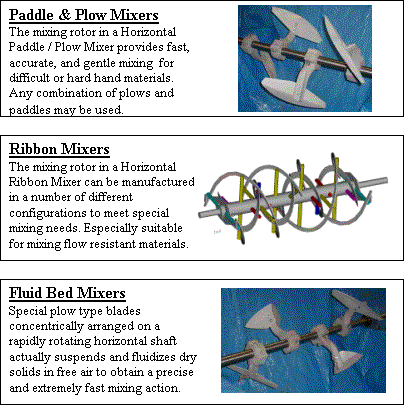

The Kelly Duplex Horizontal Mixer is unsurpassed for fast, thorough, accurate blending, heavy duty construction, long life, and trouble free performance. Curved, adjustable paddle blades combine a scooping and lifting action with a unique “criss-cross” blending pattern to assure that all material is continuously overlapped and blended to obtain a completely uniform product throughout the batch. This blending action provides the turbulent upward and downward movement required to blend liquids with solids, yet is gentle enough that such delicate materials as granular chemicals or rolled grains can be mixed without destroying the flake or texture. This unique Kelly Duplex action assures rapid mixing, leaves no pockets, lets you blend materials with widely varying densities, mixes micro ingredients with large amounts of basic ingredients, provides for a thorough cleanout and positive discharge. The mixer uniformly blends partial batches as easily and completely as it does full batches.









^ back to top ^







Continuous Mixers
Kelly Duplex Continuous Mixers are unsurpassed for fast, thorough, continuous stream blending. For well over 50 years Kelly Duplex has been consistently building a reputation for rugged, accurate, and economical continuous mixers. Our continuous mixers are ideally suited for an almost limitless variety of solid-to-solid and liquid-to-solid continuous stream mixing jobs. Typical capacities range from 50 ft.3 – 12,000 ft.3 / hour. There is an almost unlimited number of options available for these mixers, like all of our mixers; customized spray manifolds, access panels, customized mixing tool combinations, and of course sizing to meet unique customer requirements. Whatever the continuous mixing requirement, we’re confident we can meet it.



^ back to top ^

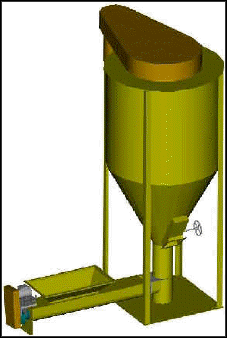

Vertical Mixers

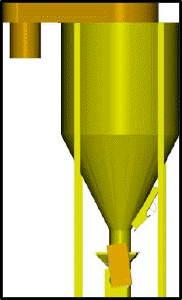

Kelly Duplex Vertical Mixers are designed for fast, thorough blending of free flowing granular or fine materials. Typical mixers can handle batch sizes from 10 ft.3 to 1800 ft.3. Large batch volumes are possible at a low initial cost with low horsepower requirements when compared with traditional (horizontal) type mixers. Excellent and rapid mixing action is provided by a large vertical helicoid screw spiral partially enclosed in an internal tube. Free flowing materials are elevated to the top of the mixer vessel where the product is mechanically dispersed. Mixing takes place by combining gravity flow, top dispersion, and bottom agitation in the lower conical area of the body. This mixer is especially well suited to applications requiring extra large batch sizes, where floor space is limited, or where a self-loading, self-discharging agitated storage vessel is required.



View - Model No. 4 Vertical Mixer
View - Vertical Mixer Pricing






^ back to top ^
