Convey Accord
- 12" Convey Accord x 10' long
- 18" ConveyAccord x 110" long
- 6" Twin Screw Feeder


12" Convey Accord x 10' long
[view pdf]

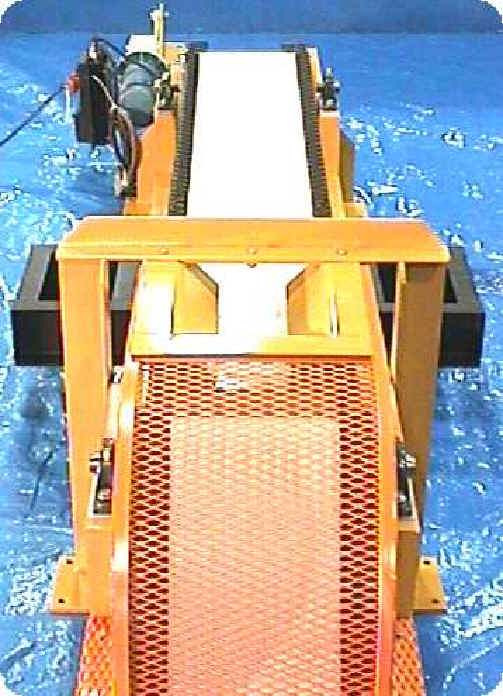

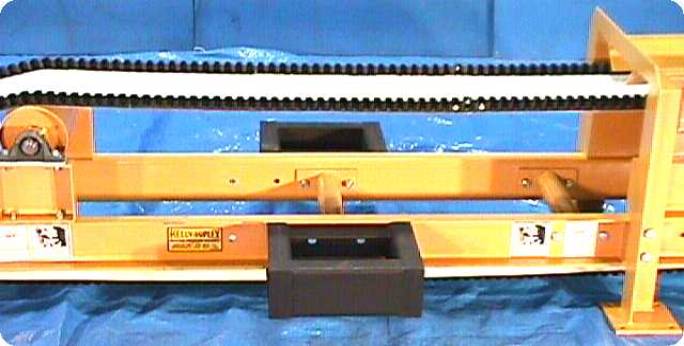

 Views show overall layout and metal detector mount:

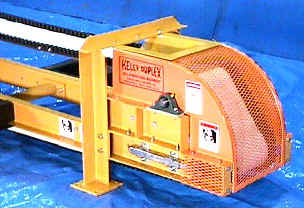

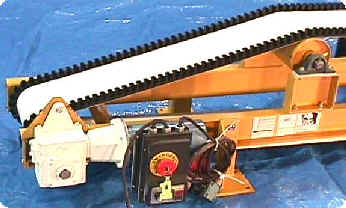

Discharge and inlet views:

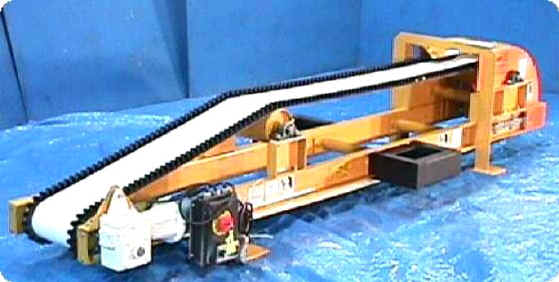

 Overall view from inlet end:

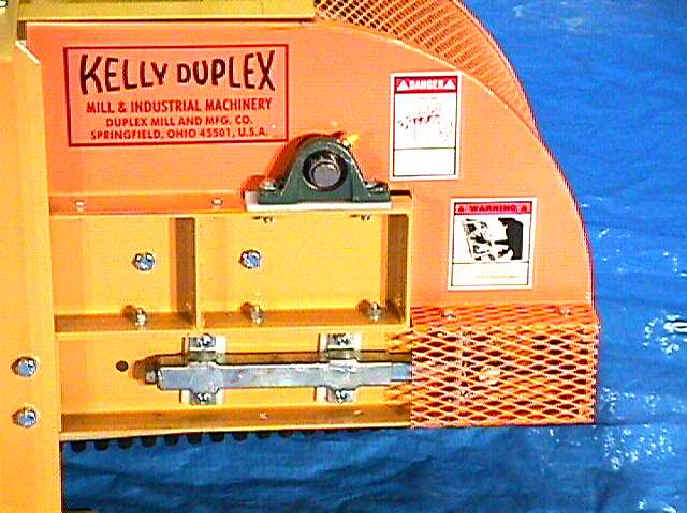

View of takeup assembly:

^ back to top ^

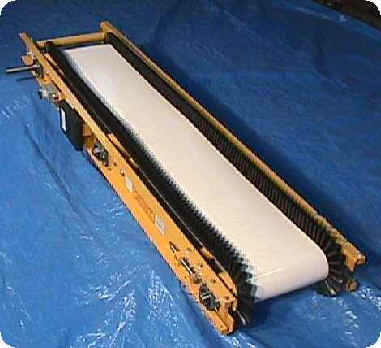

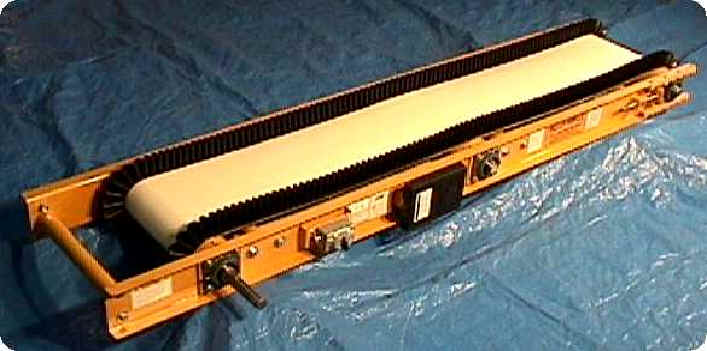

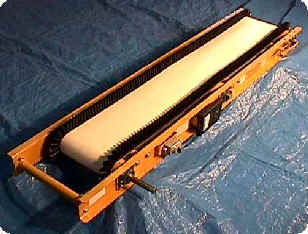

18" ConveyAccord x 110" long
Built on 7" x 2" Channel frame x 110" long
18" wide belt with 1-1/2" wide x 3" high sidewalls running on 6" diameter pulleys
Drive: Shaft mounted and hydraulic motor powered
Weight less drive: 385 lbs.
[view pdf]

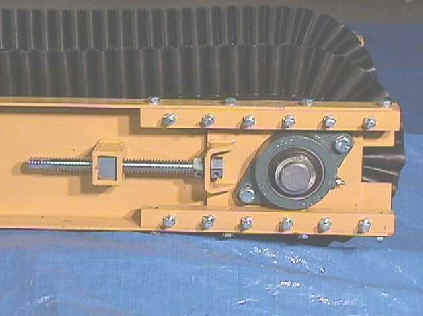

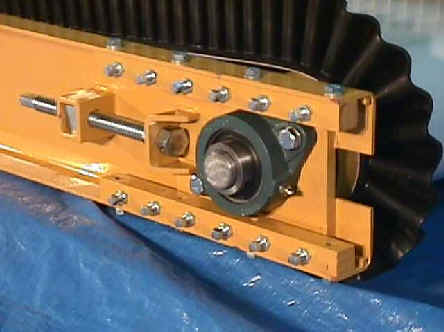

Takeup detail at discharge end of ConveyAccord:

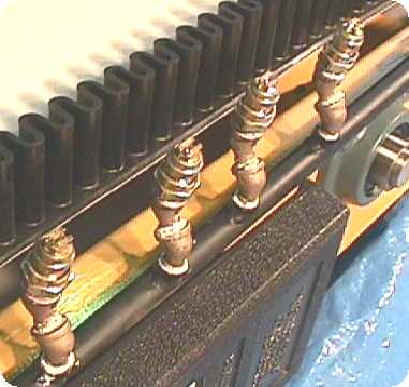

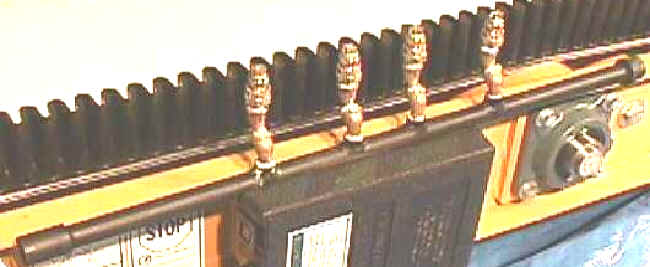

Spray Manifold:

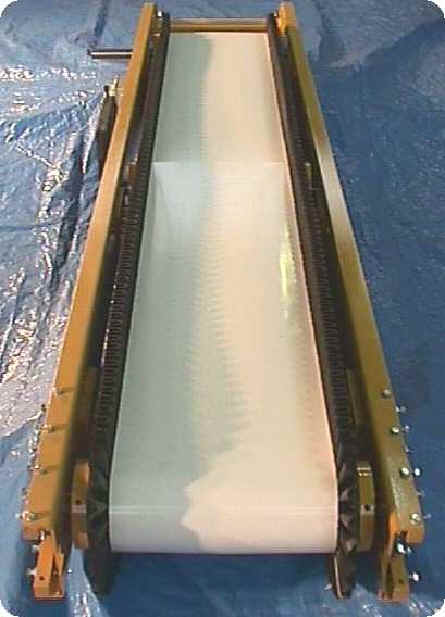

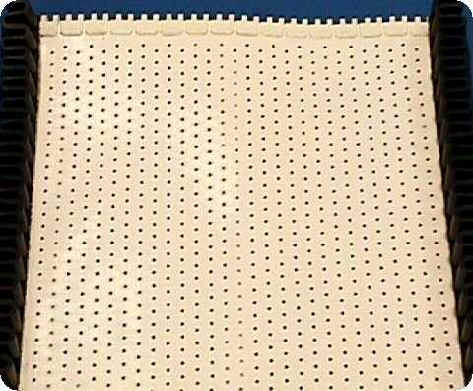

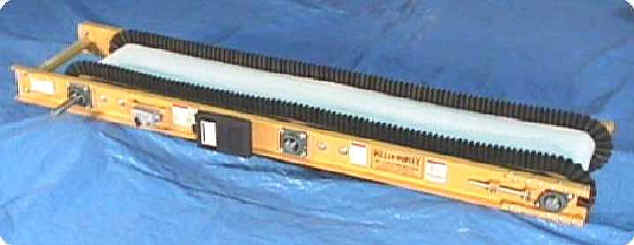

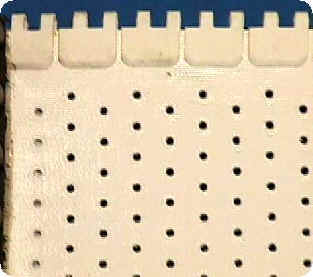

Views show optional perforated belting. 1/8" perforations on 1/2" staggered centers.

^ back to top ^

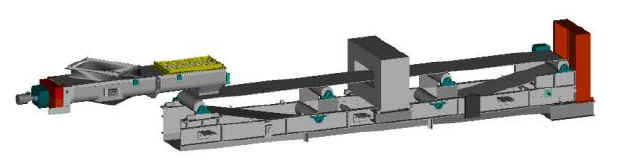

6" Twin Screw Feeder
[view pdf]

^ back to top ^
