9 inch Tubular Screw Conveyor
9 Inclined Tube Screw

6" U-Trough Screw Conveyor
6" U-Trough Screw Conveyor (2)




9 inch Tubular Screw Conveyor
[view pdf]

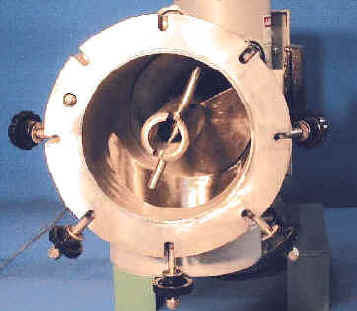

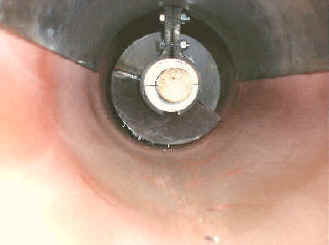

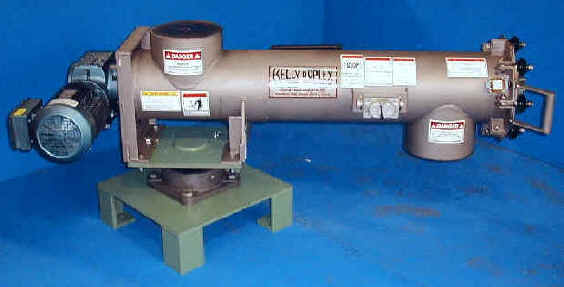

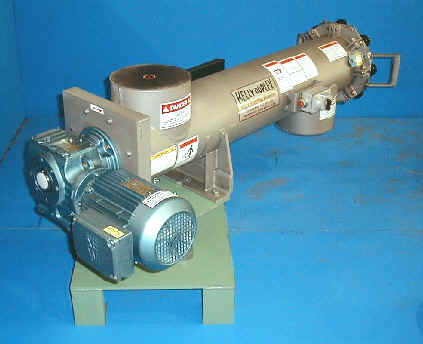

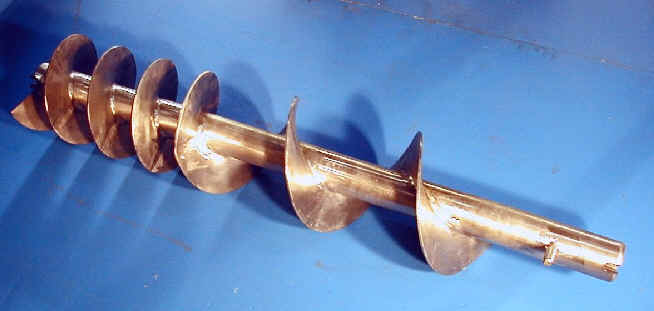

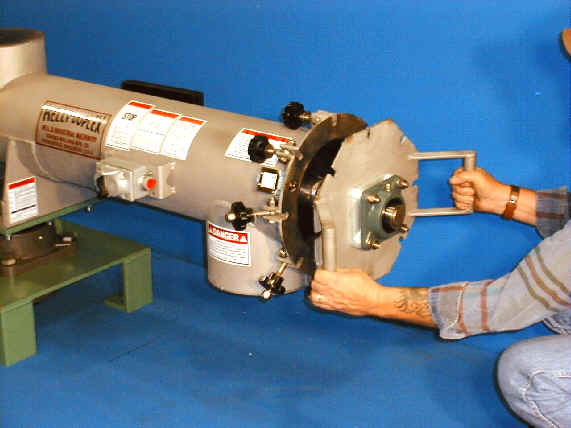

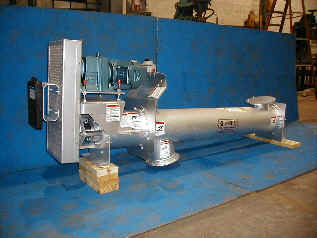

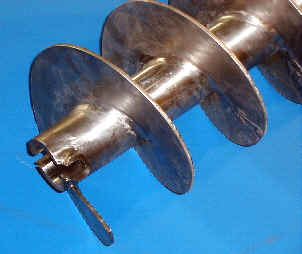

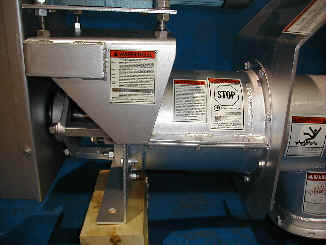

This 9 inch Tubular Screw Conveyor, 52" long endplate to endplate and constructed of T304SS is designed for hand breakdown and frequent cleaning. The tubular housing pivots on a fixed base so that the discharge end swings away from the work area for convenient maintenance. The internal conveyor parts are polished for easy cleanup. The spiral is slotted into the drive shaft and into the tail shaft so that re-assembly is accomplished by simply slipping the parts together after cleaning.

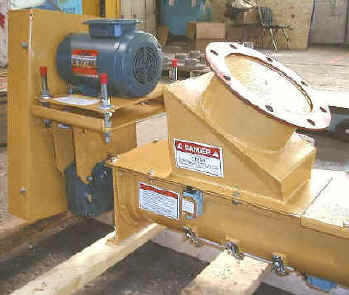

Special high temperature construction used on 9 inclined tube screw.


High temperature seal & bearing construction


^ back to top ^



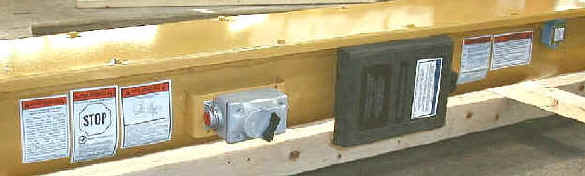

6" U-Trough Screw Conveyor

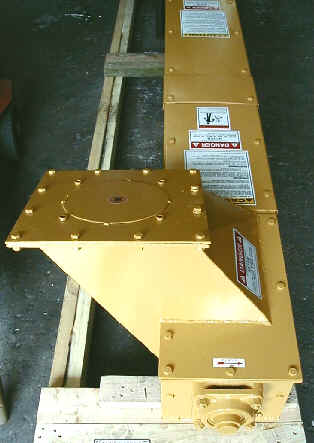

35'-8" long, inclined at 29-1/2 degrees

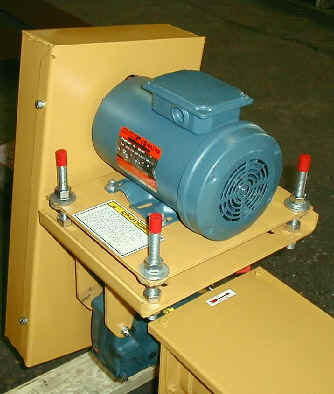

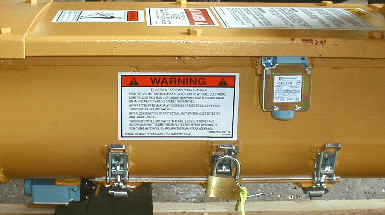

2 HP drive at 91 RPM, trough shrouds

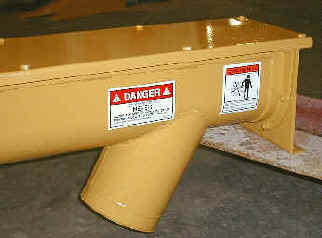

8" inlet corrected to level; M01004, June 1999

[view pdf]










6" U-Trough Screw Conveyor (2)
22'-1" long, inclined at 46-1/2 degrees
2 HP drive at 100 RPM, trough shrouds
Inlet offset 8-1/2"; M01005, June 1999

[view pdf]


^ back to top ^
