Diverter Valve
12" Convey Accord x 10' long
6", 2-Way, Style "C"
For High Temperature Operations
69148-H13068, 1998

[view pdf]

This 6" x 2-way diverter valve is air cylinder operated and features a 45-degree material flow. The tolerance of high temperatures is enhanced by the use of TEFLON shaft seals, high temperature bearings, VITON sealed air cylinder and stand-off mounting of position limit switches and solenoid air valves. Constructed of carbon steel the entire fabrication is painted with high temperature aluminum paint.

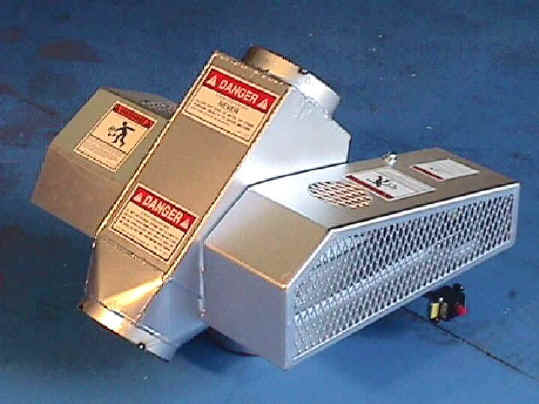

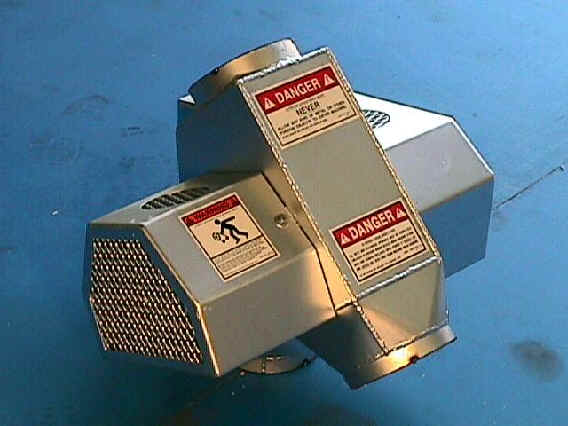

Views here illustrate the protective covers mounted over the air cylinder valve actuation assembly, the position limit switches and the solenoid air valve:
